Multiecuscan

Posted: **26 Apr 2025, 21:42**

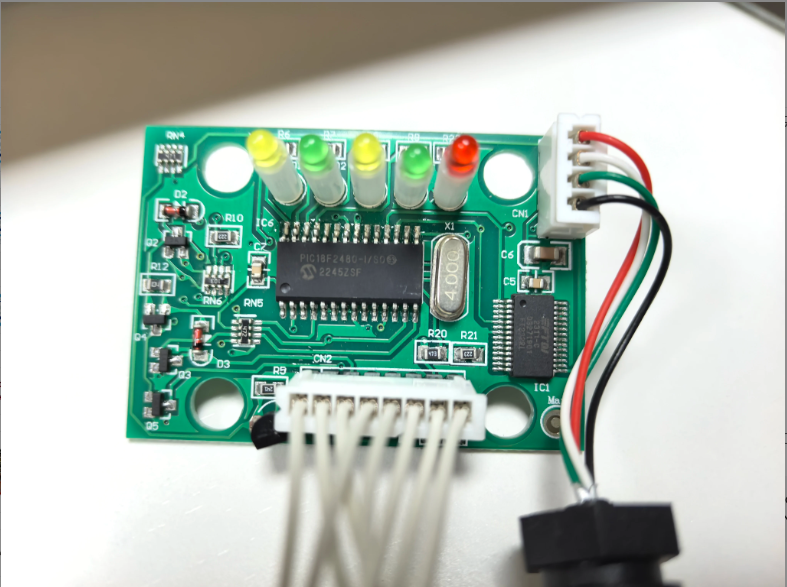

Darkburrow wrote: ↑08 Jun 2024, 19:35 Did i buy a Dud, this does not look right at all ? :/

Mine looks nothing like anyone elses on here, is mine a China-fake? It doesnt even say "ELM327" on it.

I have the same and don't know what to do!

Posted: **22 Jun 2025, 19:09**

Exxagerator wrote: ↑07 Apr 2025, 06:26 Hi Guys
I want to share with You all what I came across when looking here and there how to do proxi alignement in my 2003 punto 1.2 8v.
I've got two interfaces from aliexpress with which I managed to succesfully do proxi alignement:
1) you must desolder from pcb - Big thanks to oskar69 from page number 227
It is this one: OBD2 Car Diagnostic Tool elm 327 HS CAN /MS CAN ELM327 USB V1.5 FTDI/CH340 PIC18F25K80
https://pl.aliexpress.com/item/1005006083281661.html?spm=a2g0o.order_list.order_list_main.143.44591c24s9JzEI&gatewayAdapt=glo2pol
Then desolder 1200 resistor (120 Ohm resistor) between pin 6 and pin 14, it is located near pins for OBDII socket, you will manage to find this
2) you don't need to solder anything: Vgate vLinker FS ELM327
https://pl.aliexpress.com/item/1005005065055828.html?spm=a2g0o.order_list.order_list_main.113.44591c24s9JzEI&gatewayAdapt=glo2pol
I was able to connect with MES and have no problems so far.
Wish you luck

Thank you very much for share info,Vgate vLinker FS ELM327 work excellent on Multiecuscan.

Posted: **24 Jun 2025, 15:26**

Exxagerator wrote: ↑07 Apr 2025, 06:26 Hi Guys
I want to share with You all what I came across when looking here and there how to do proxi alignement in my 2003 punto 1.2 8v.
I've got two interfaces from aliexpress with which I managed to succesfully do proxi alignement:
1) you must desolder from pcb - Big thanks to oskar69 from page number 227
It is this one: OBD2 Car Diagnostic Tool elm 327 HS CAN /MS CAN ELM327 USB V1.5 FTDI/CH340 PIC18F25K80
https://pl.aliexpress.com/item/1005006083281661.html?spm=a2g0o.order_list.order_list_main.143.44591c24s9JzEI&gatewayAdapt=glo2pol
Then desolder 1200 resistor (120 Ohm resistor) between pin 6 and pin 14, it is located near pins for OBDII socket, you will manage to find this
2) you don't need to solder anything: Vgate vLinker FS ELM327
https://pl.aliexpress.com/item/1005005065055828.html?spm=a2g0o.order_list.order_list_main.113.44591c24s9JzEI&gatewayAdapt=glo2pol
I was able to connect with MES and have no problems so far.
Wish you luck

Dear All

What is meant by desoldering the resistor

remove the resistor leaving the circuit is open?
Or connect the two terminals after removing the resistor?

Thanks in advance

Posted: **26 Jun 2025, 07:35**

The resistor has to be REMOVED.

Technically the resistor is a Bus Terminator. All CAN-Bus have to have a termination of 120 ohms. However this termination is already present on the Body Computer so having two terminations kills / reduces the data signal. Hence the need to remove the terminator in the ELM interface.

Posted: **18 Aug 2025, 21:01**

hola gente, tampoco puedo comunicarme con ecu de abs epb, sera problema de mi obd2? mi obd2 es elm327 hs-pro
si pueden ayudarme agradeceria.

saludos.

Posted: **11 Sep 2025, 04:06**

Bonjour,
une 2 plus
ELM327 1.4 usb de 2012
voir les photos
R04 à dessouder
lecture bus CAN OK
Cdlt GLP

Posted: **26 Sep 2025, 15:10**

glp22 wrote: ↑11 Sep 2025, 04:06 Bonjour,
une 2 plus
ELM327 1.4 usb de 2012
voir les photos
R04 à dessouder
lecture bus CAN OK
Cdlt GLP

Bonjour, malheureusement vos images n'apparaissent pas... Un lien peut-être? Merci par avance.
Hello, unfortunately your images are not appearing... Perhaps a link? Thanks in advance.
