Re: Elm 327 v.1.5 (V Gate Bluetooth) Connect problem
Posted: 13 Dec 2013, 17:29
by Alfaeddy
Hi emiosca85
What is the problem?
CAN bus protocols not to read?
According to a user, this red resitor
then remove the CAN bus problem should be resolved.

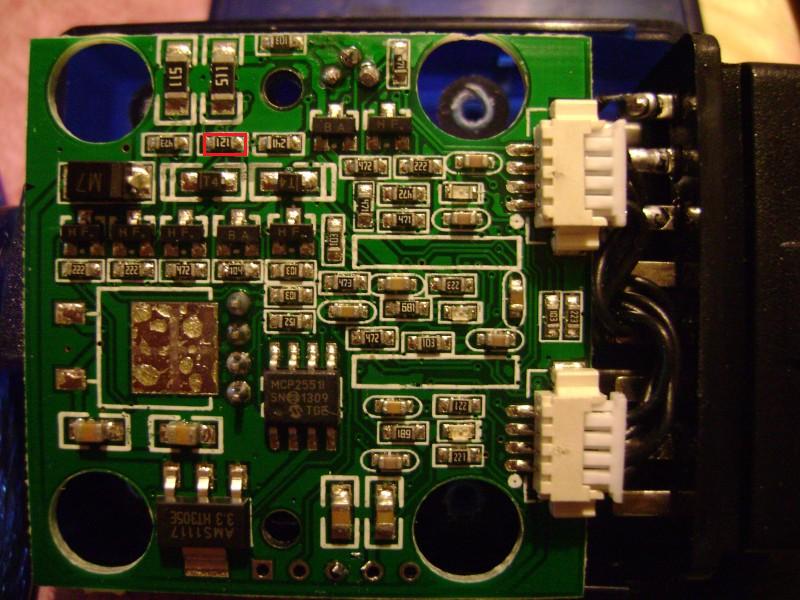

- Mini ELM markiert.jpg (80.86 KiB) Viewed 8842 times
I assume no warranty for the data.
Greetings Eddy
Re: Elm 327 v.1.5 (V Gate Bluetooth) Connect problem
Posted: 13 Dec 2013, 18:39
by emiosca85
but in a previus post you said that this resistance should not be the right one...is it?
Re: Elm 327 v.1.5 (V Gate Bluetooth) Connect problem
Posted: 13 Dec 2013, 20:10
by Alfaeddy
Hello
This interface I have not and do not therefore know the structure of the board
therefore I said that I do not know
But Anomio76 described in this post, he has removed the resistor
and now this ELM works
viewtopic.php?f=5&t=1493&p=13587#p13586
Greetings Eddy
Re: Elm 327 v.1.5 (V Gate Bluetooth) Connect problem
Posted: 13 Dec 2013, 21:02
by anonimo76
I confirm ....
removed resistance "121" and OK!
connected Lancia y mjtd 1.3 2009, Fiat Croma 1.9 2009, lancia musa mjtd 1.3, alfa mito 1.6
greetings
Re: Elm 327 v.1.5 (V Gate Bluetooth) Connect problem
Posted: 14 Dec 2013, 10:18
by emiosca85
I will try then. I hope I will menage to open the plastic box without breaking it. Thanks. Danke scoen, eddy fur deinem helfen.
Re: Elm 327 v.1.5 (V Gate Bluetooth) Connect problem
Posted: 14 Dec 2013, 17:55
by anonimo76
remove the plastic, the adhesive, below are the screws ...
Re: Elm 327 v.1.5 (V Gate Bluetooth) Connect problem
Posted: 14 Dec 2013, 18:44
by emiosca85

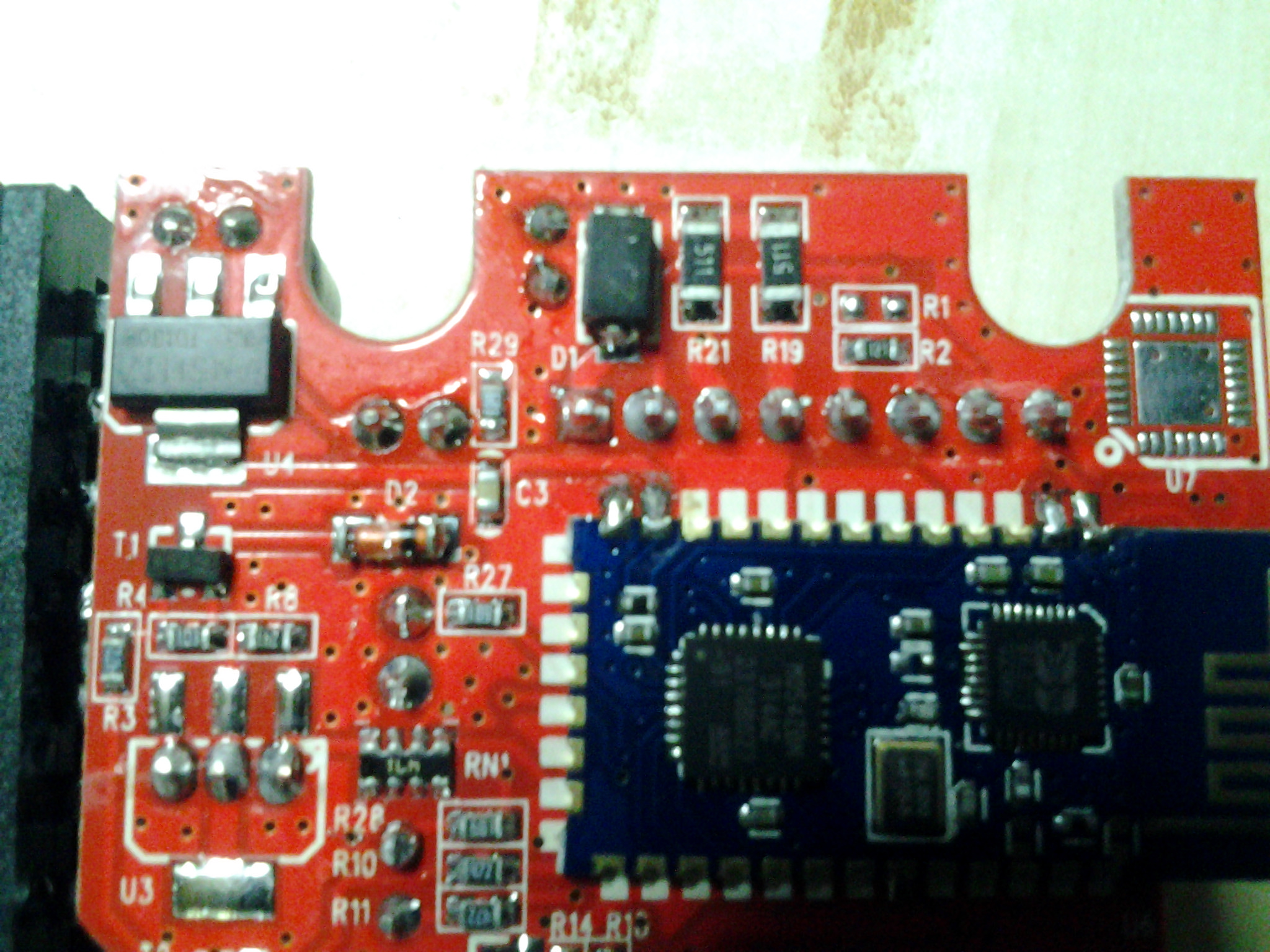

- 20131214_193635.jpg (1.16 MiB) Viewed 8816 times
Mine is a little bit different, do you think is r2 that one to remove?
Re: Elm 327 v.1.5 (V Gate Bluetooth) Connect problem
Posted: 14 Dec 2013, 22:58
by Alfaeddy
Hello
As anemonio67 already writes remove the label
including you find the screws.
Yes, I think R2 (121) is the bridge resistor
controlling nor whether the solder pins go under to pin 6 + 14. ?
Then R2 is correct
Greetings Eddy
Re: Elm 327 v.1.5 (V Gate Bluetooth) Connect problem
Posted: 15 Dec 2013, 12:48
by emiosca85

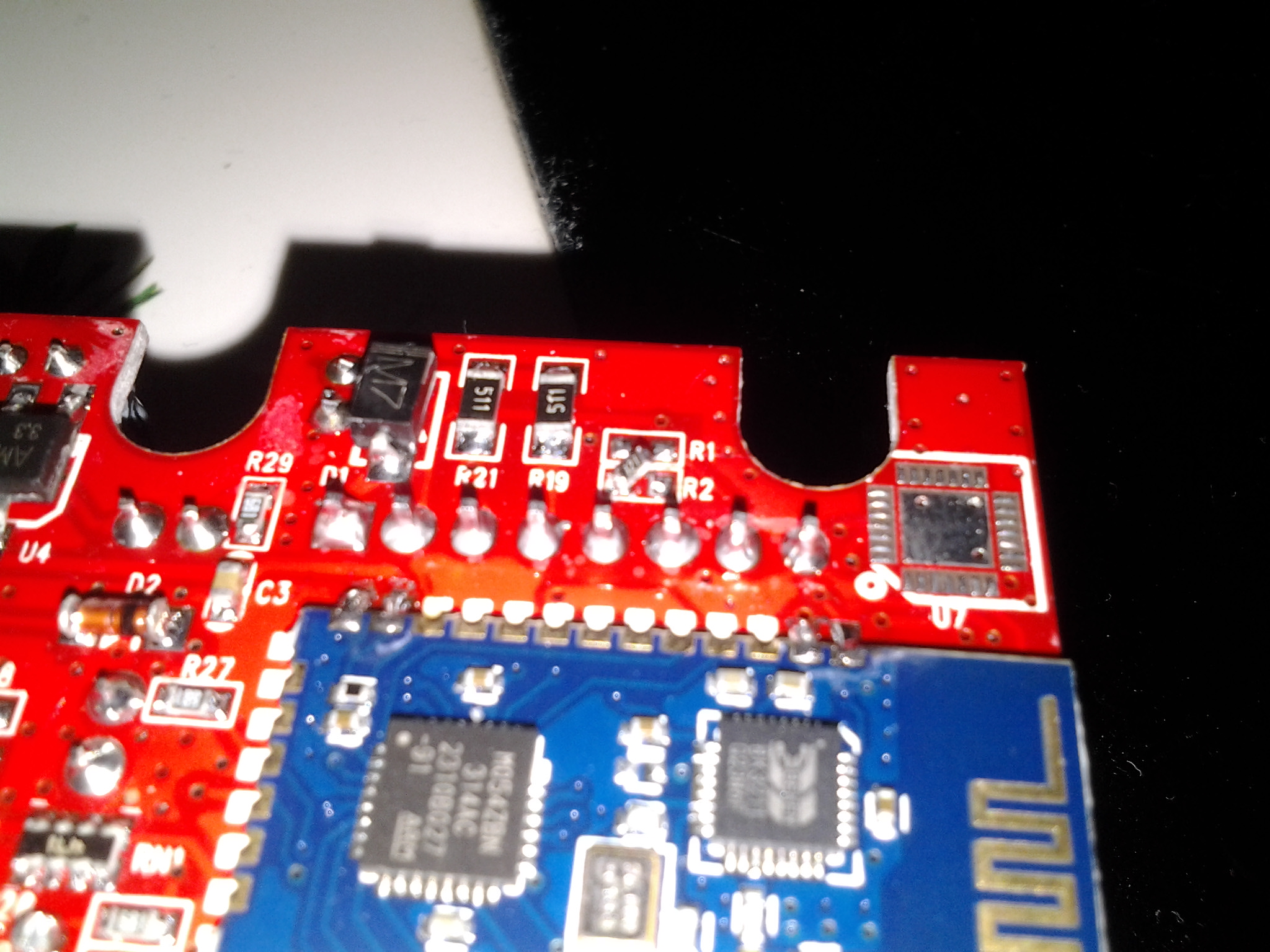

- 20131215_101752.jpg (913.2 KiB) Viewed 8782 times
Great guys, it's working now!
Re: Elm 327 v.1.5 (V Gate Bluetooth) Connect problem
Posted: 15 Jan 2014, 15:07
by Soul Reaver
Hi.
I have a Vgate Bluetooth ELM interface v1.5 too.
Outside look identical to the one in this thread, but when I opened it to remove that resistor, I found that inside it's different.
Can you help me to identify the resistor?
Thanks a lot.
Full size:
http://imageshack.com/a/img834/9863/q47p.jpg
http://imageshack.com/a/img577/540/0nu6.jpg
