When I do a search in MES for available components I only get the motor and selespeed gear box, but from what I can see from the website almost all the components of a stilo selespeed should be available with an ELM interface.
What am I doing wrong?
Stilo: Only connects to motor and selespeed ECU
Stilo: Only connects to motor and selespeed ECU
Hey All!
When I do a search in MES for available components I only get the motor and selespeed gear box, but from what I can see from the website almost all the components of a stilo selespeed should be available with an ELM interface.
What am I doing wrong?
When I do a search in MES for available components I only get the motor and selespeed gear box, but from what I can see from the website almost all the components of a stilo selespeed should be available with an ELM interface.
What am I doing wrong?
Re: Stilo: Only connects to motor and selespeed ECU
Hello
The error is in your ELM interface and even some other errors
- Your ELM is certainly one of the trade? (Amazon, Ebay, etc.)
these often need to be modified. to the CAN bus to read logs
viewtopic.php?f=5&t=1493
- To be able to read ABS, steering and Xenon lights you will need an green adapter
http://www.ebay.de/itm/151016679362?ssP ... 1423.l2649
- And to be able to read the airbag control unit, a KKL interface with adapter
Buy or equal to a switchable KKL Interface
http://www.ebay.de/itm/151015643685?ssP ... 1423.l2649
http://www.ebay.de/itm/151016681363?ssP ... 1423.l2649
http://www.ebay.de/itm/151015653820?ssP ... 1423.l2649
Greetings Eddy
The error is in your ELM interface and even some other errors
- Your ELM is certainly one of the trade? (Amazon, Ebay, etc.)
these often need to be modified. to the CAN bus to read logs
viewtopic.php?f=5&t=1493
- To be able to read ABS, steering and Xenon lights you will need an green adapter
http://www.ebay.de/itm/151016679362?ssP ... 1423.l2649
- And to be able to read the airbag control unit, a KKL interface with adapter
Buy or equal to a switchable KKL Interface
http://www.ebay.de/itm/151015643685?ssP ... 1423.l2649
http://www.ebay.de/itm/151016681363?ssP ... 1423.l2649
http://www.ebay.de/itm/151015653820?ssP ... 1423.l2649
Greetings Eddy
Re: Stilo: Only connects to motor and selespeed ECU
Thanks for the reply!
Actually I bought my ELM at a dealer who only deals in diagnostics tools for cars.
From what I can read the resistor modification is only needed if the interface doesn't work at all, but mine connects to both the engine and gearbox.
Shouldn't I be able to connect to the Marelli Climate Control Unit without any adapters?
Actually I bought my ELM at a dealer who only deals in diagnostics tools for cars.
From what I can read the resistor modification is only needed if the interface doesn't work at all, but mine connects to both the engine and gearbox.
Shouldn't I be able to connect to the Marelli Climate Control Unit without any adapters?

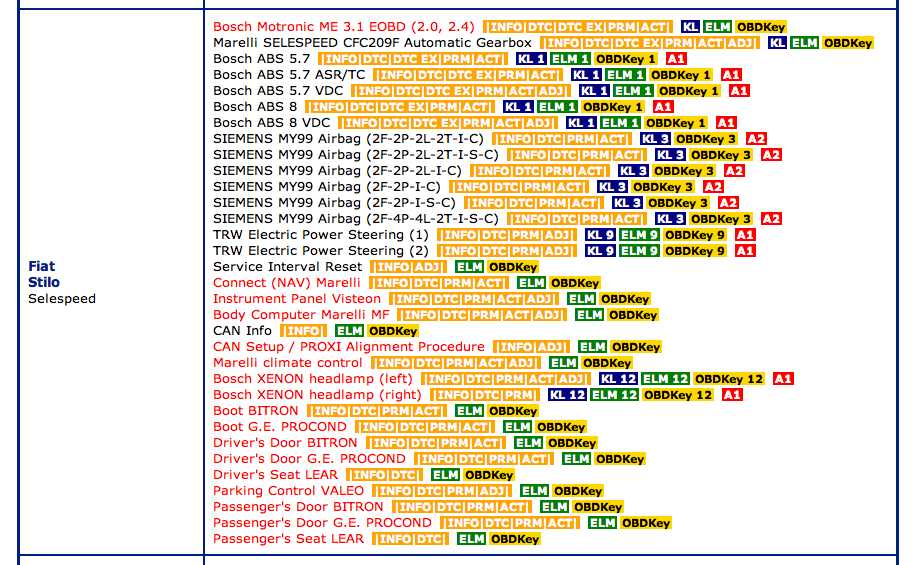

- Skærmbillede 2013-10-21 kl. 17.33.33.png (194.1 KiB) Viewed 2303 times
Re: Stilo: Only connects to motor and selespeed ECU
Hello BenjaminK
A dealer for Diagosegeräte, this buy somewhere in China or elsewhere.
And as I have already described several times!
MES interface with these problems only in the CAN Bus Protocol
Therefore, you can also e.g. no connection manufacture of air conditioning.
If a vehicle CAN bus can not be read with these ELM.
Your Selespeed ECU and will not be read via CAN, so this also works
This will read about the protocol ISO14230,
Greetings Eddy
A dealer for Diagosegeräte, this buy somewhere in China or elsewhere.
And as I have already described several times!
MES interface with these problems only in the CAN Bus Protocol
Therefore, you can also e.g. no connection manufacture of air conditioning.
If a vehicle CAN bus can not be read with these ELM.
Your Selespeed ECU and will not be read via CAN, so this also works
This will read about the protocol ISO14230,
Greetings Eddy
Re: Stilo: Only connects to motor and selespeed ECU
Hey Eddy,
Thank you very much for your help and patience
I opened up my ELM today and found that the termination resistor was of course wrong, so i removed it and, voila, everything worked
\Benjamin
Thank you very much for your help and patience
I opened up my ELM today and found that the termination resistor was of course wrong, so i removed it and, voila, everything worked
\Benjamin
Re: Stilo: Only connects to motor and selespeed ECU
Hello Benjamin
I thought it yet, according to your description, it could only
be this error.
Nice that it works now.
Greetings Eddy
I thought it yet, according to your description, it could only
be this error.
Nice that it works now.
Greetings Eddy
